Stainless Steel Flanged Check Valve (JIS 10K / ANSI 150)
Description
Stainless Steel Flanged Check Valve (JIS 10K / ANSI 150) – Technical Datasheet
1. Product Overview

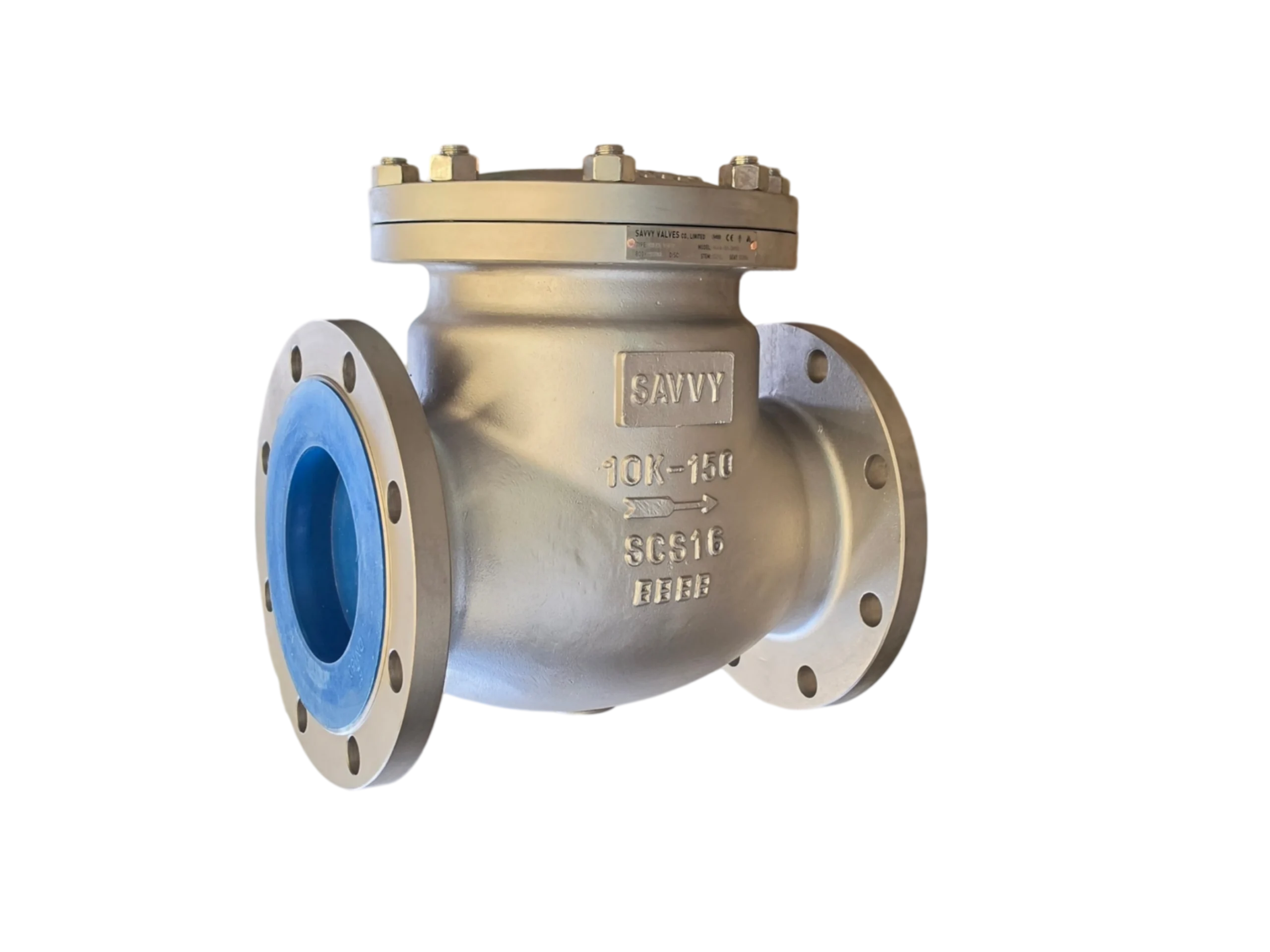

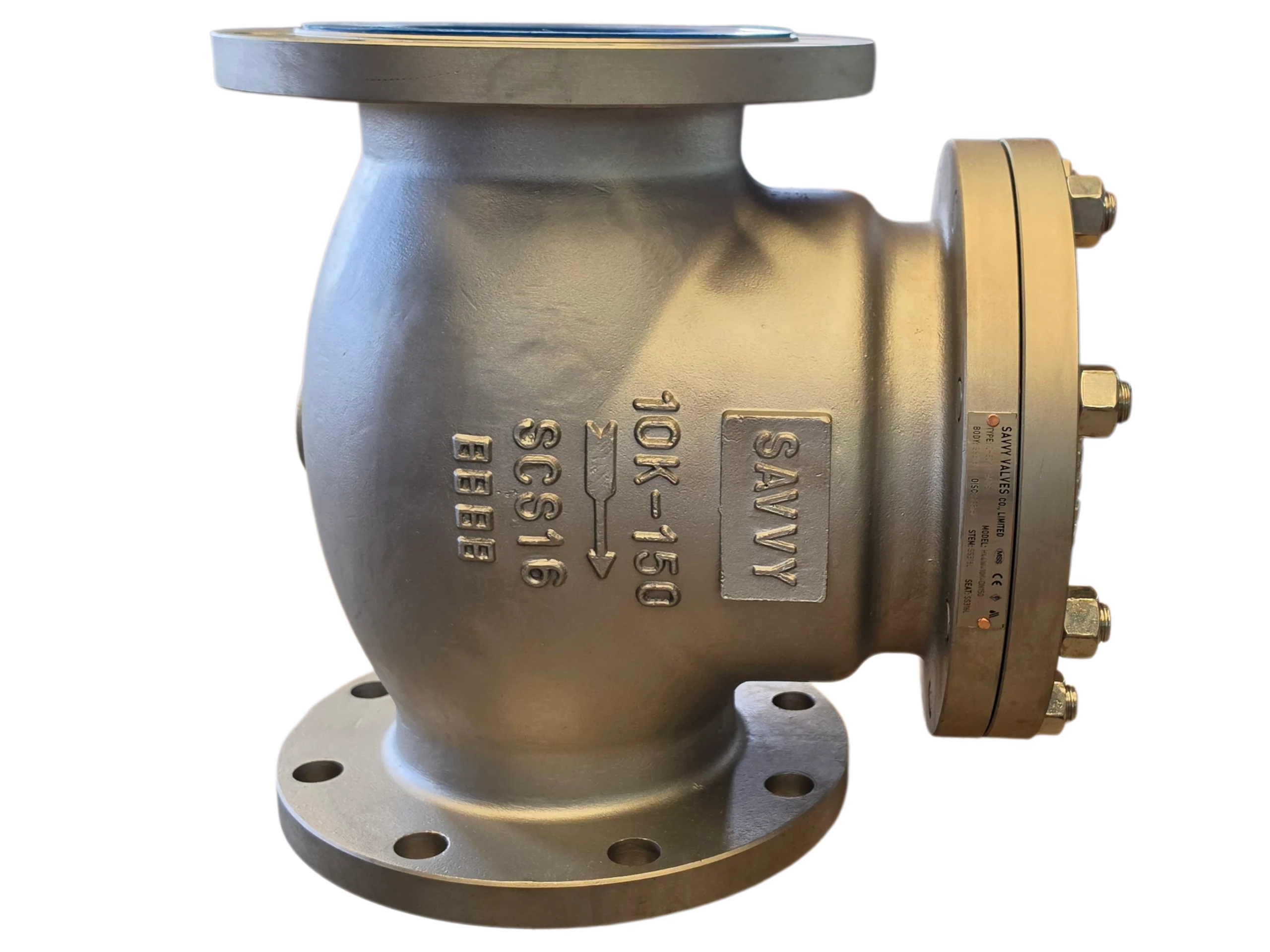

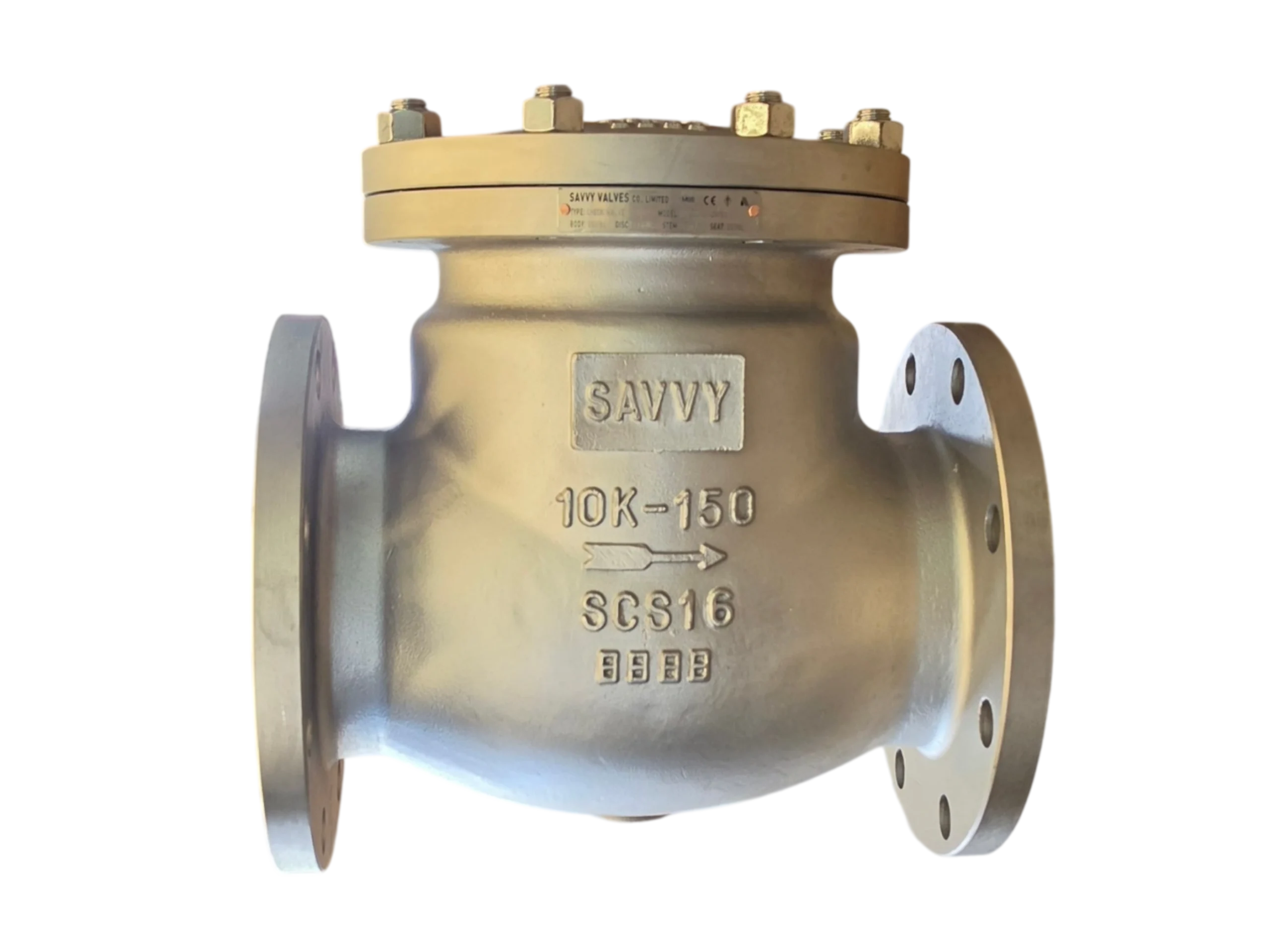

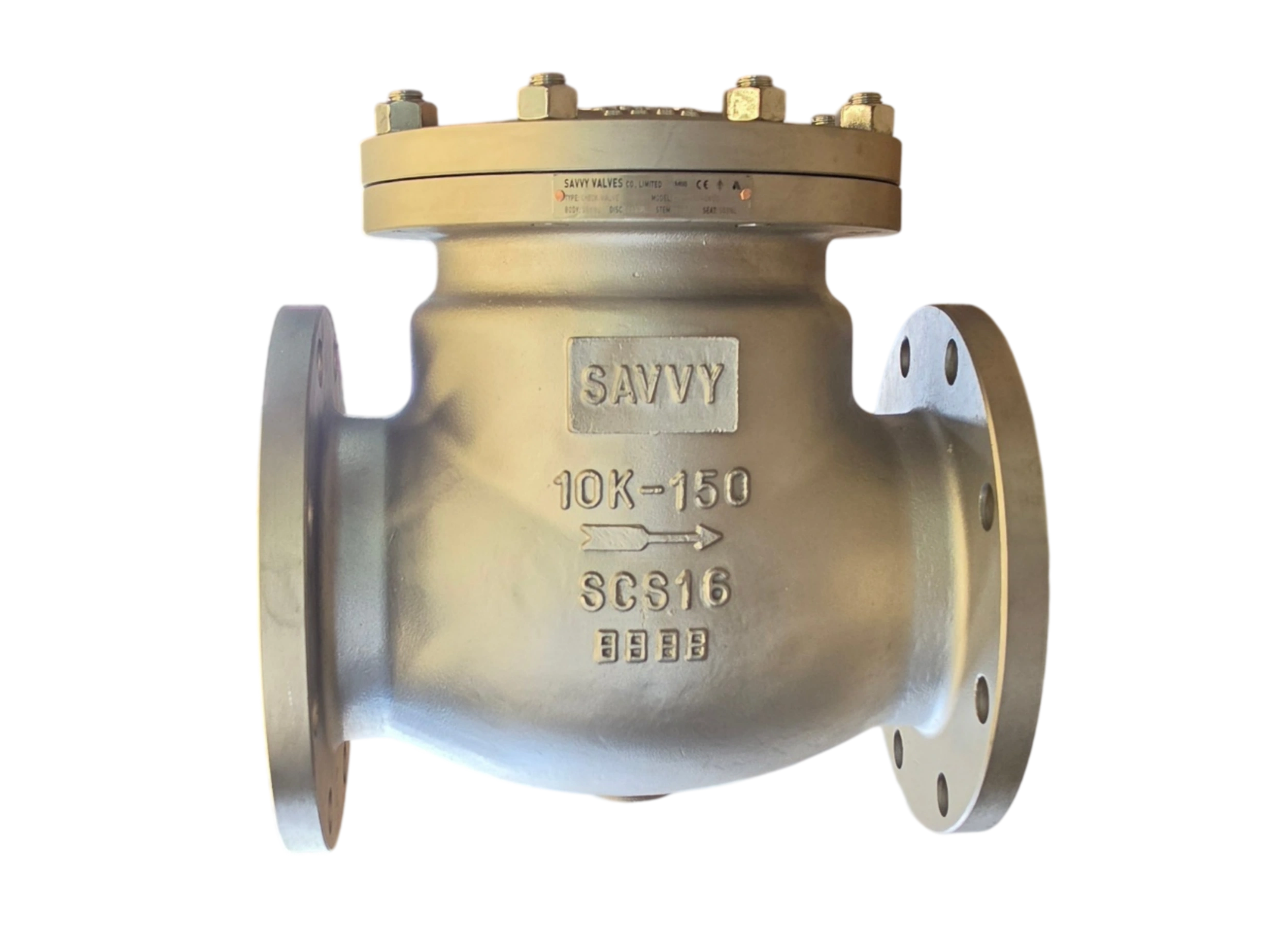

This product is a high-quality stainless steel flanged check valve designed to prevent backflow in industrial piping systems. As shown in the images, it features a robust spherical body, a bolted bonnet design, and flanged connections. The valve body is clearly marked with “SAVVY” (Brand), “SCS16” (Stainless Steel 316), “10K-150” (Multi-standard pressure rating), and a flow direction arrow. It is widely used in chemical, petrochemical, water treatment, and food processing industries, particularly for corrosive media and high-purity applications.
2. Technical Specifications (Nameplate Data)
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Flanged Check Valve |
| Brand | SAVVY |
| Body Material | SCS16 (ASTM A351 CF8M / SS316) |
| Nominal Pressure (PN) | JIS 10K / ANSI Class 150 |
| Nominal Diameter (DN) | DN15 – DN300 (Customizable upon request) |
| Connection Type | Flanged (RF / FF) |
| Operation Type | Automatic (Spring-loaded or Swing check mechanism) |
| Applicable Temperature | -20°C ~ +200°C (Depends on seat material) |
| Applicable Medium | Water, steam, oil, corrosive chemical fluids, gas |
| Flow Direction | Uni-directional (Indicated by cast arrow on body) |
| Leakage Class | ANSI Class IV / VI (Metal seat / Soft seat) |
3. Material of Main Parts
| Part Name | Material Specification |
|---|---|
| Body | SCS16 (ASTM A351 CF8M / SS316) |
| Bonnet | SCS16 (ASTM A351 CF8M / SS316), Bolted Connection |
| Disc / Plug | SS316 / SS304 with Stellite overlay (optional) |
| Seat | Metal-to-Metal / PTFE / EPDM (optional) |
| Spring | Stainless Steel (SS304 / SS316) |
| Gasket | Spiral Wound Gasket (SWG) or PTFE |
| Bolts & Nuts | Stainless Steel (SS304 / SS316) |
4. Applicable Standards
| Standard Type | Reference Standard |
|---|---|
| Design & Manufacture | API 594 / JIS B 2074 / DIN 3202 / GB/T 12236 |
| Flange Connection | JIS B2212 (10K) / ANSI B16.5 (Class 150) / DIN 2501 |
| Face to Face | API 594 / JIS B 2002 / EN 558 |
| Pressure Test | API 598 / ISO 5208 / GB/T 13927 |
5. Key Features
-
Superior Corrosion Resistance: Manufactured from SCS16 (CF8M/SS316) stainless steel, providing excellent resistance to aggressive and corrosive media in harsh environments.
-
Multi-Standard Flange Compatibility: The flange dimensions and drilling are designed to be compatible with both JIS 10K and ANSI Class 150 standards (marked “10K-150” on the body), reducing inventory and installation complexity.
-
Robust Bolted Bonnet Design: The bolted bonnet structure ensures a secure, leak-proof seal and allows for easy maintenance and replacement of internal parts.
-
Clear Flow Indication: A prominent cast arrow on the valve body ensures correct installation orientation, preventing costly reverse-flow damage.
-
Low Pressure Drop: The streamlined internal flow path minimizes pressure loss and turbulence, optimizing system efficiency.
