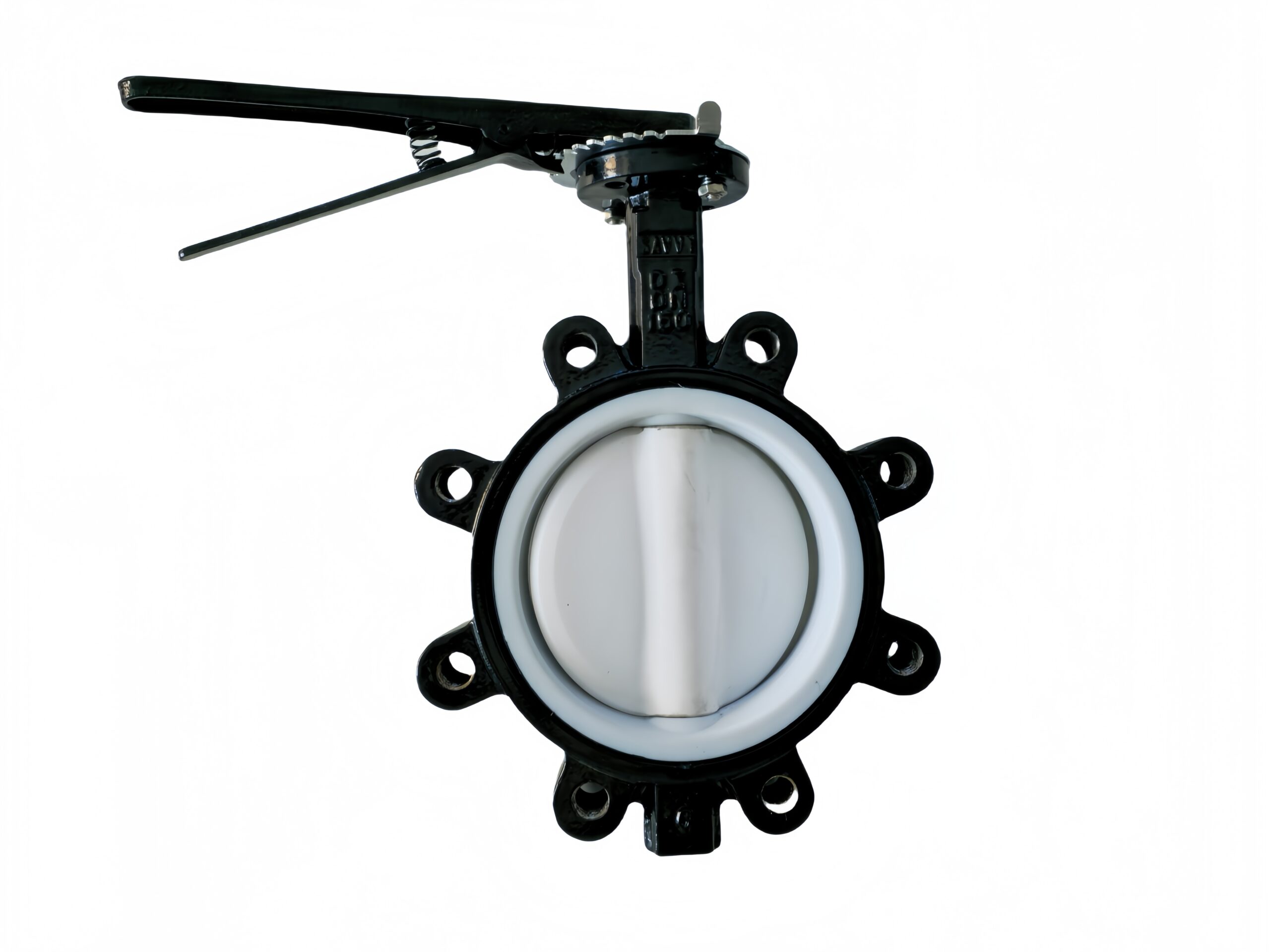

Lugged Fully PTFE-Lined Butterfly Valve

Description

Lugged Fully PTFE-Lined Butterfly Valve

• Size: 6″ (DN150)

• Pressure Rating: 150 LB (ASME B16.5)

• Key Materials:

  • Body: ASTM A395 (Ductile Iron)

  • Disc: ASTM A351 CF8M (Stainless Steel 316) with PTFE Coating

  • Stem: AISI 316 Stainless Steel

  • Seat: Reinforced PTFE (Poliytetrafluoroethylene)

• Operation: Lever Actuated

• End Connection: Screwed Lugged (ASME B16.5 Compliant)

• Design Features:

  • Full PTFE Lining for Superior Corrosion Resistance

  • Pinless Shaft Configuration for Enhanced Durability

• Surface Treatment: Sandblasted & Epoxy Coated (Rust-Resistant Finish)

• Temperature Range: -10°C to +120°C (14°F to 248°F)
