Forged Aluminum Bronze (C95800) Two-Piece Floating Ball Valve
Description
Forged Aluminum Bronze (C95800) Two-Piece Floating Ball Valve – Technical Datasheet
1. Product Overview

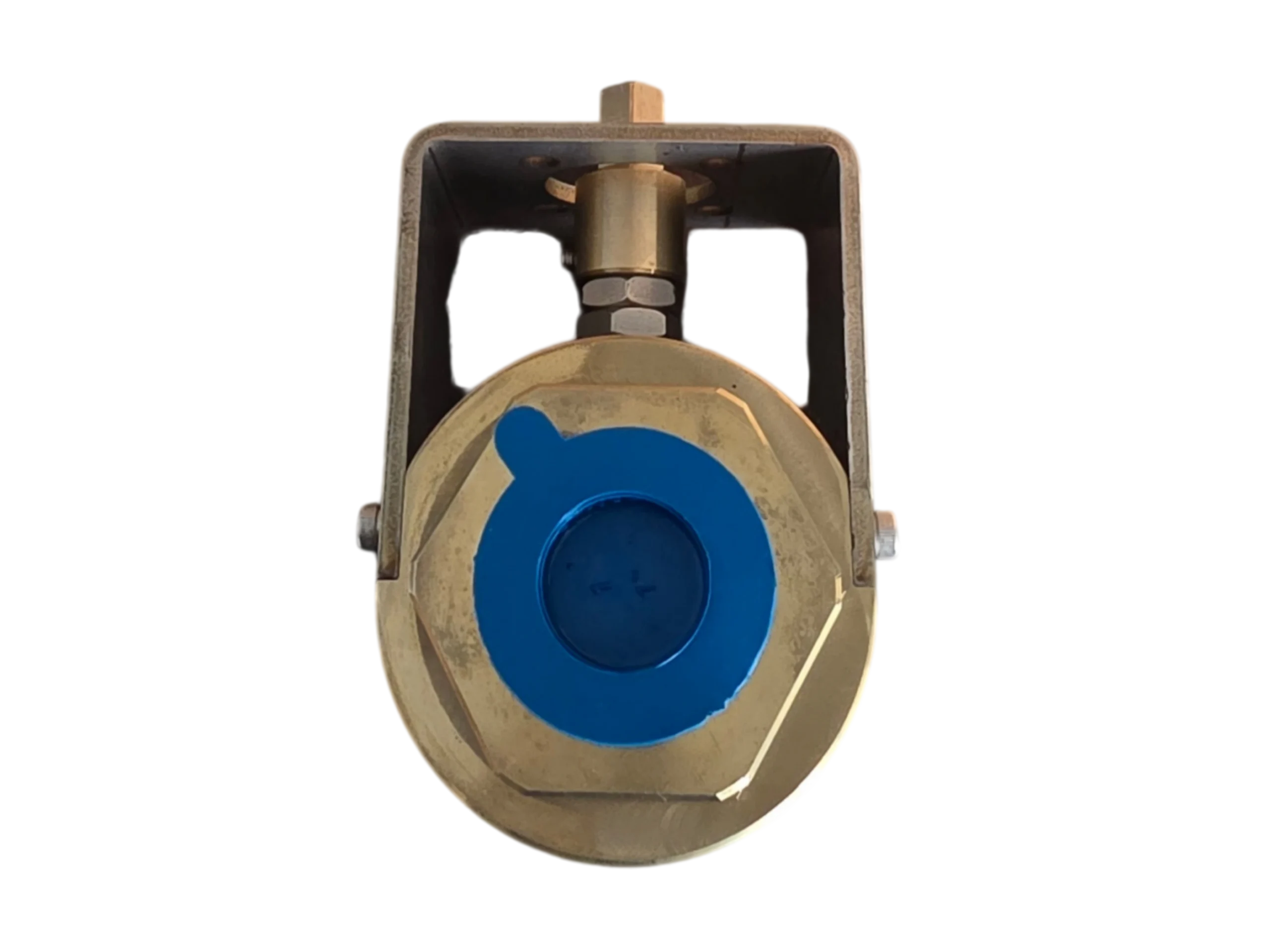

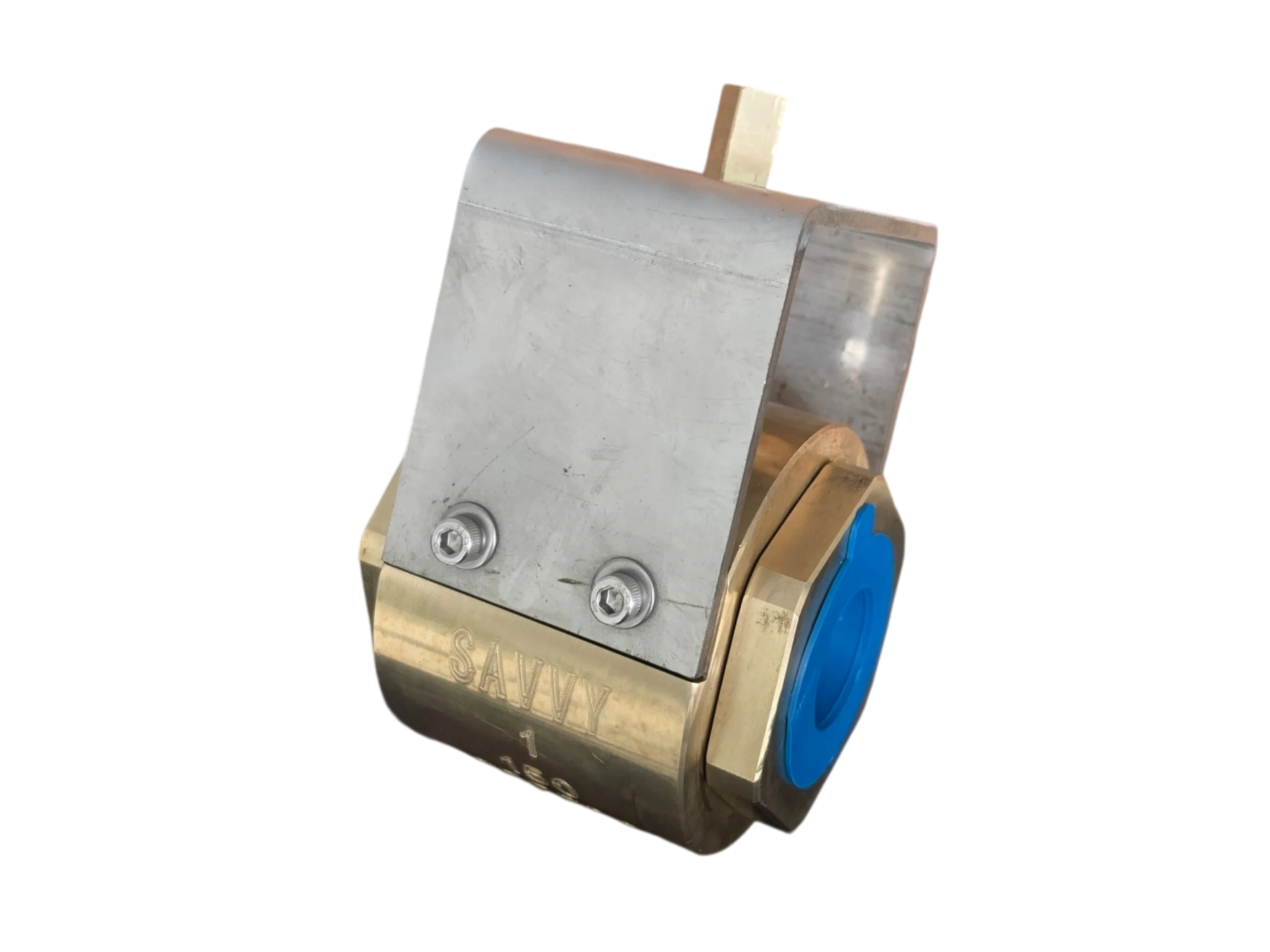

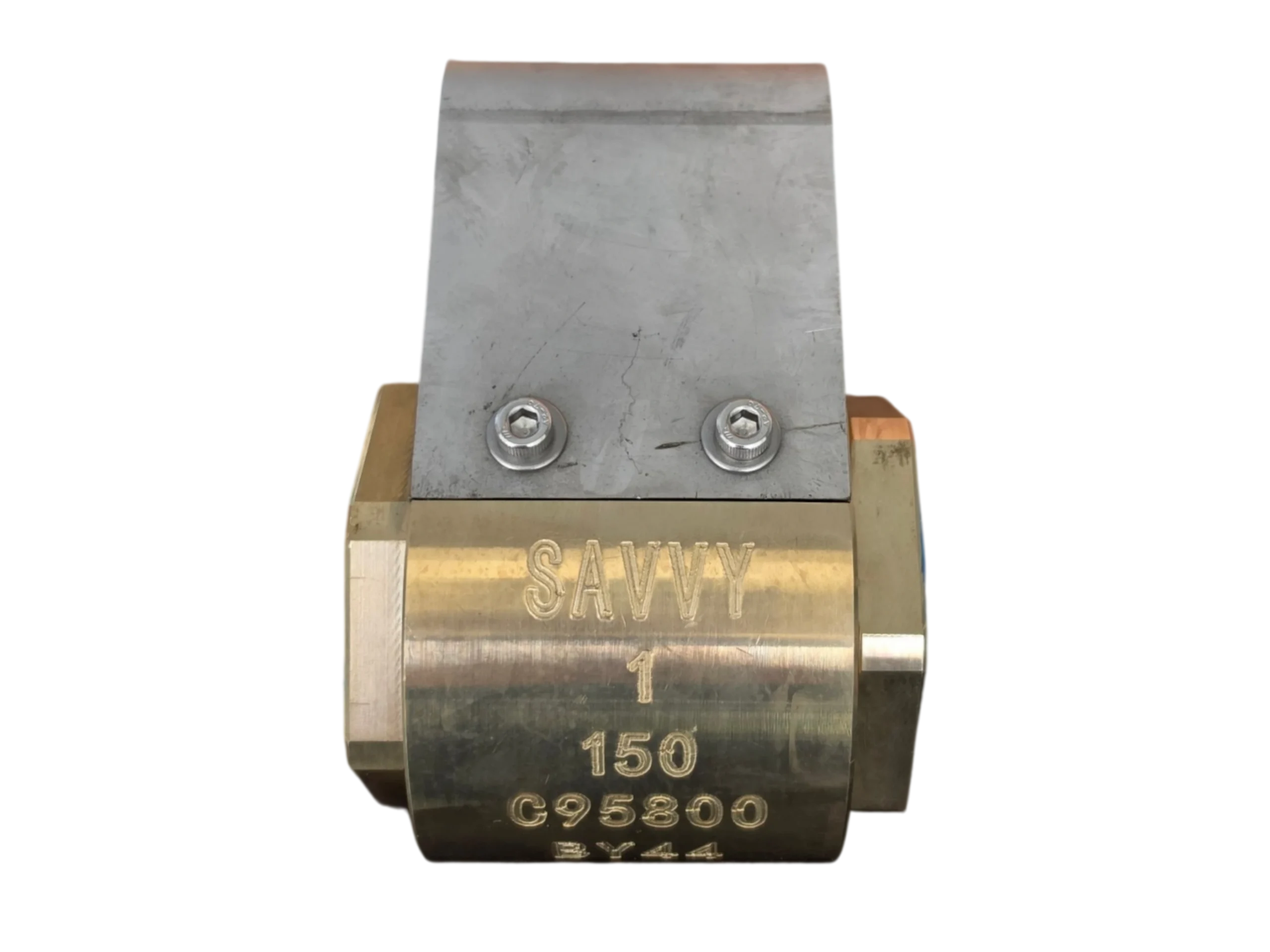

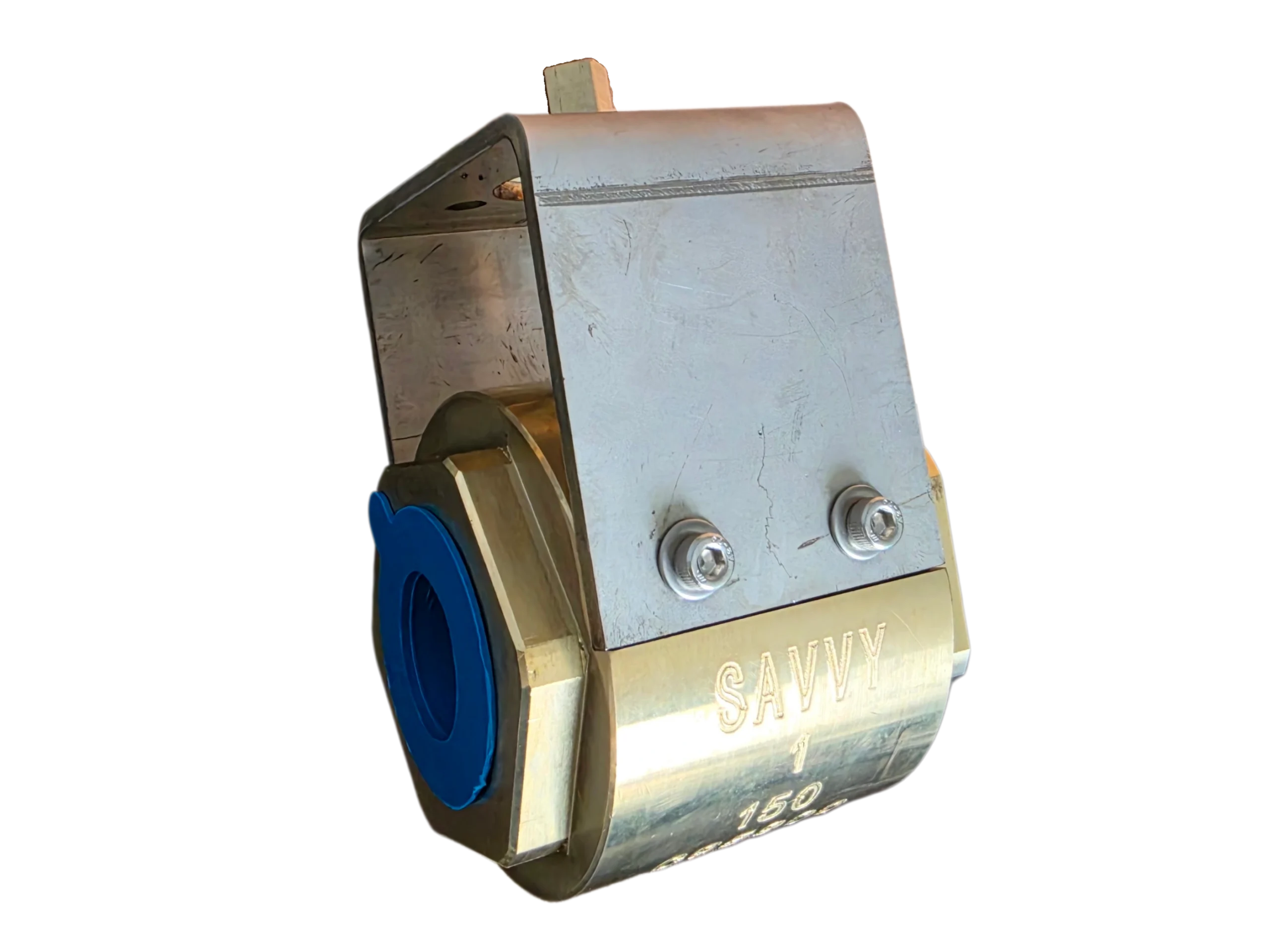

This product is a high-performance Forged Aluminum Bronze Ball Valve, specifically designed for severe corrosive environments, particularly seawater and marine applications. As shown in the provided images, it features a robust two-piece body made of C95800 (Nickel Aluminum Bronze), a floating ball design, and a top mounting pad for pneumatic actuation. The valve body is clearly marked with “SAVVY”, “1” (1 inch), “150” (Class 150), and “C95800”. It offers exceptional resistance to corrosion, erosion, and cavitation, making it the ideal choice for desalination plants, shipbuilding, offshore oil and gas, and chemical processing.
2. Technical Specifications (Nameplate Data)
| Parameter | Specification |
|---|---|
| Product Name | Forged Aluminum Bronze Two-Piece Ball Valve |
| Brand | SAVVY |
| Body Material | C95800 (Forged Nickel Aluminum Bronze) |
| Nominal Diameter (DN) | 1″ (DN25) |
| Nominal Pressure (PN) | Class 150 (ASME B16.34) |
| Body Structure | Two-Piece (2PC) |
| Ball Type | Floating Ball |
| Connection Type | Threaded (NPT / BSP) or Socket Weld (Customizable) |
| Operation Mode | Manual (currently); Prepared for Pneumatic Actuator |
| Mounting Pad | Standard ISO 5211 Top Mounting Bracket (For Pneumatic Actuator) |
| Applicable Temperature | -29°C ~ +200°C (Depends on seat material) |
| Applicable Medium | Seawater, brine, marine environments, corrosive chemicals |
| Design Standard | API 608 / ASME B16.34 / MSS SP-110 |
3. Material of Main Parts (Standard Configuration)
| Part Name | Standard Material | Optional Material |
|---|---|---|
| Body | C95800 (Forged Nickel Aluminum Bronze) | – |
| Bonnet / End Cap | C95800 (Forged Nickel Aluminum Bronze) | – |
| Ball | SS316 / SS304 with Hard Chrome Plating | Aluminum Bronze + Nickel Plating |
| Stem | SS316 / SS304 | Monel / K-Monel |
| Seat | PTFE / RPTFE | PEEK / TFM1600 |
| Stem Packing | PTFE / Graphite | – |
| Mounting Pad | Welded Carbon Steel / Stainless Steel Bracket | – |
| Handle | Carbon Steel / Stainless Steel (Detachable) | – |
4. Applicable Standards
| Standard Type | Reference Standard |
|---|---|
| Design & Manufacture | API 608 / ASME B16.34 / MSS SP-110 |
| Flange / Thread Connection | ASME B1.20.1 (NPT) / ASME B16.11 (SW) |
| Pressure Test | API 598 / ISO 5208 |
| Mounting Pad | ISO 5211 |
5. Key Features
-
Superior Seawater Corrosion Resistance: The C95800 forged aluminum bronze body offers outstanding resistance to seawater corrosion, pitting, and erosion, significantly outperforming standard brass or stainless steel in marine environments.
-
Two-Piece Floating Ball Design: The two-piece body allows for easy maintenance and replacement of the ball, seats, and seals. The floating ball design ensures tight bi-directional sealing, even at low pressures.
-
Pneumatic Actuation Ready: The valve is equipped with a top mounting bracket (pad) that complies with ISO 5211 standards. This allows for quick and easy installation of a pneumatic actuator (double-acting or spring-return) to upgrade the valve for automated control.
-
Blow-Out Proof Stem: The stem is designed with an anti-blow-out feature, ensuring safety in high-pressure applications.
-
Anti-Static Device (Optional): The ball, stem, and body are electrically bonded to prevent static electricity buildup, which is critical in chemical and gas applications.
-
Heavy-Duty Construction: The forged material provides a denser, stronger structure compared to castings, ensuring reliability under high mechanical stress and vibration.
