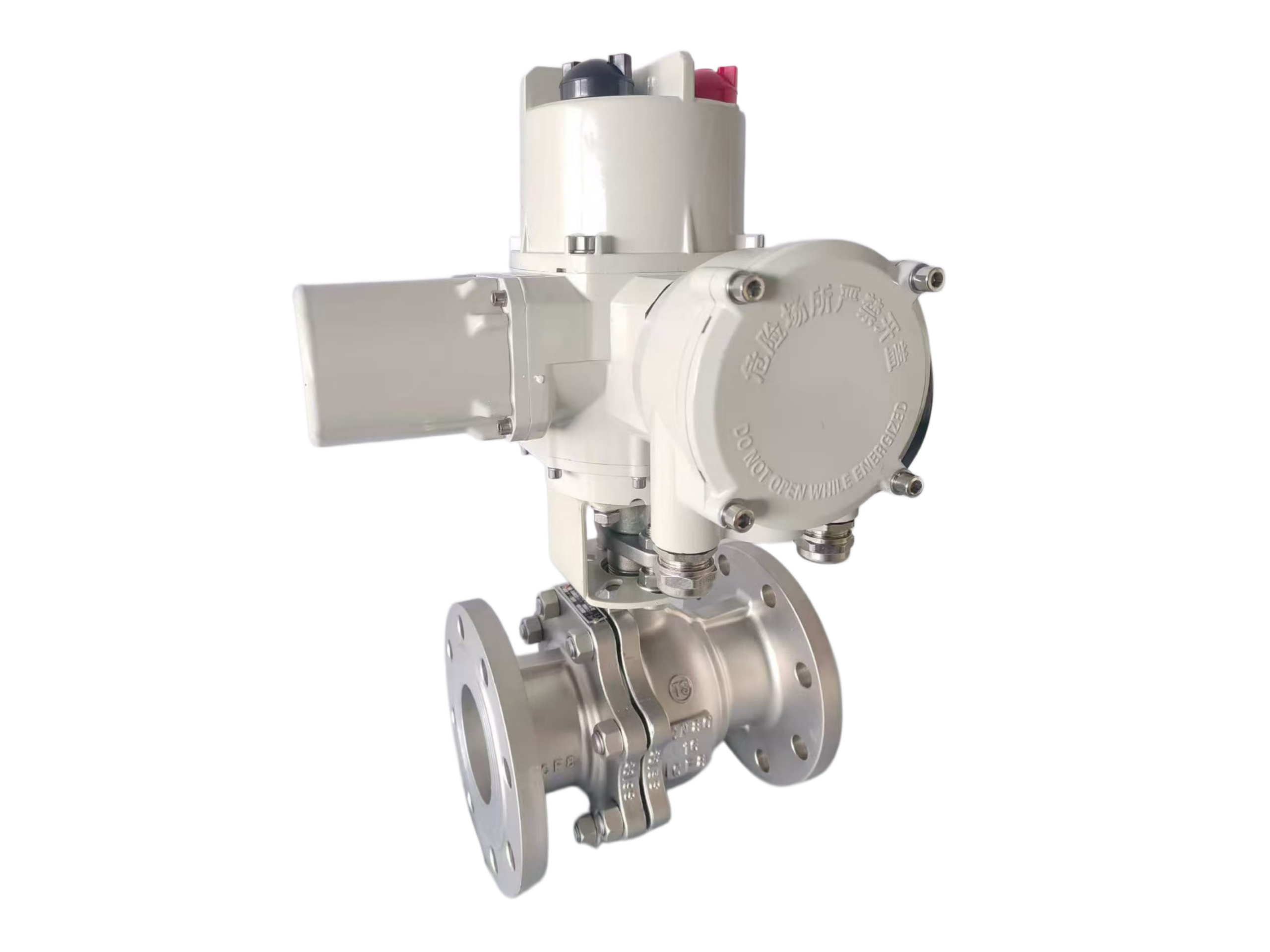

DN80-PN16-RF SS Motorized Ball Valve
Description
DN80 – PN16 – RF Stainless Steel Motorized Floating Ball Valve
Technical Data Sheet
1. General Information
| Item | Description |
|---|---|
| Valve Type | Floating Ball Valve |
| Nominal Size | DN80 (3 Inch) |
| Pressure Rating | PN16 (16 bar) |
| Body Material | Stainless Steel (CF8M / 316 typical) |
| Flange Connection | RF (Raised Face) to EN 1092-1 or ASME B16.5 |
| Operation | Motorized Actuator |
| Application | Frequent on-off or remote control service; suitable for water, oil, gas, mild corrosive media |
2. Design & Manufacturing Standards
| Standard | Description |
|---|---|
| Design Code | ISO 17292 / BS 5351 / API 6D (optional) |
| Body Construction | 2-piece or 1-piece floating ball design (as required) |
| Flange Dimensions | EN 1092-1 PN16 RF or ASME B16.5 Class 150 RF |
| Face-to-Face Dimension | ISO 5752 / EN 558-1 Series 1 or ASME B16.10 |
| Pressure-Temperature Rating | ASME B16.34 or EN 12516 |
| Inspection & Testing | API 598 or ISO 5208 |
| Fire Safe Design | API 607 / ISO 10497 (optional) |
| Anti-Static Device | API 6D / ISO 17292 (optional or standard) |
| Top Flange | ISO 5211 (direct mounting for electric actuator) |
3. Main Materials (Typical)
| Component | Standard Material | Optional Materials |
|---|---|---|
| Body | Stainless Steel CF8M (A351 Gr. CF8M / 316) | Stainless Steel CF3M (316L), 304, Duplex SS |
| Ball | Stainless Steel A182 F316 | Stainless Steel F304, Duplex SS |
| Stem | Stainless Steel A182 F316 | Stainless Steel F304, 17-4PH |
| Seat Sealing | PTFE (virgin) | Reinforced PTFE (RPTFE), PEEK, Nylon, Metal hardfacing |
| Packing | PTFE V-ring | Flexible graphite + PTFE, low emission packing |
| Gaskets | PTFE or Flexible graphite + SS spiral wound | As above |
| Fasteners | Stainless Steel A193 B8 | Alloy Steel B7 (caution in corrosive environments) |
4. Outline Dimensions & Weight (Typical values – may vary by manufacturer)
| Dimension Parameter | Value (Typical, EN 558-1 Series 1) |
|---|---|
| Face-to-Face Length L | Approx. 200 mm (ASME B16.10 short) or 203 mm (ISO long) |
| Flange Outer Diameter D | Approx. 200 mm (EN 1092-1 PN16) |
| Bolt Circle Diameter K | Approx. 160 mm |
| Flange Thickness C | Approx. 22 mm |
| Number / Diameter of Bolt Holes | 8 × 18 mm |
| Center Height (flange face to center) | Approx. 50 mm |
| Overall Height (excluding actuator) H | Approx. 130 mm |
| Valve Weight (excluding actuator) | Approx. 12 kg |
| Electric Actuator Weight (reference) | Approx. 8 – 15 kg (depending on torque and brand) |
⚠ Dimensions above are typical references. Final dimensions to be confirmed with manufacturer’s drawing.
5. Pressure-Temperature Rating (ASME B16.34 – CF8M body)
| Temperature (°C) | Max. Working Pressure (bar) |
|---|---|
| -29 ~ 38 | 16.0 (PN16 rating) |
| 100 | 13.6 |
| 150 | 11.2 |
| 200 | 9.2 |
| 250 | 7.5 |
| 300 | 5.9 |
| 350 | 4.8 |
| 400 | 3.5 |
| 425 | 2.8 |
For PN16 stainless steel valves, the maximum allowable working pressure at ambient temperature is 16 bar. With metal seat, the temperature range can be extended to -29°C ~ +400°C.
6. Performance Data
| Parameter | Value |
|---|---|
| Pressure Rating | PN16 (16 bar @ 38°C) |
| Shell Test Pressure (water) | 24 bar |
| High-Pressure Seat Test (water) | 17.6 bar |
| Low-Pressure Air Seat Test | 6 bar |
| Allowable Differential Pressure | Full rated pressure (floating ball design requires verification at high ΔP) |
| Leakage Rate | Soft seat: Zero leakage (ISO 5208 Rate A / API 598 Rate A) |
| Temperature Range (PTFE seat) | -29°C ~ +150°C |
| Temperature Range (PEEK seat) | -29°C ~ +250°C |
| Suitable Media | Water, oil, gas, natural gas, mild acids/bases, solvents, etc. |
| Anti-Static Design | Optional (conductive path between ball, stem and body) |
7. Electric Actuator Specification (Reference)
As electric actuators vary by brand and control requirements, below is a typical configuration recommendation:
| Parameter | Typical Value |
|---|---|
| Actuator Type | Quarter-turn electric actuator |
| Mounting Flange | ISO 5211 F07 or F10 |
| Max. Output Torque | Based on valve torque + safety factor (DN80 floating ball torque approx. 50–100 N·m, select 100–150 N·m) |
| Power Supply | 220V / 1Ph / 50Hz or 380V / 3Ph / 50Hz |
| Control Type | On-Off or Modulating (4-20mA) |
| Enclosure Protection | IP67 (outdoor type) |
| Explosion Proof (optional) | Ex d IIB T4 (flameproof) |
| Accessories | Limit switches, torque switches, heater, local/remote control |
8. Key Features
-
Floating ball design – Ball is supported by seats on both ends; medium pressure pushes the ball against the downstream seat for tight shut-off; ideal for small to medium bore (DN ≤ 200)
-
Stainless steel body – Excellent corrosion resistance; suitable for chemical, food, pharmaceutical, seawater, and other demanding services
-
Bi-directional sealing – PTFE seats provide zero leakage shut-off
-
Low operating torque – Lower torque compared to trunnion ball valves; allows use of compact electric actuators
-
Fire safe design (optional) – Compliant with API 607; retains certain sealing integrity after fire exposure
-
Anti-static device (optional) – Prevents electrostatic charge accumulation
-
Motorized actuator – Enables remote on/off, local operation, and signal feedback for automated control
9. Ordering Information
Please provide the following when ordering:
-
Valve size (DN80), pressure rating (PN16)
-
Body, ball, and seat materials (PTFE / PEEK / metal)
-
Flange standard (EN or ASME) and face-to-face standard
-
Media name, temperature, and pressure
-
Electric actuator power supply, control type (on-off/modulating), protection/explosion-proof rating
-
Special requirements (fire-safe, anti-static, low emission packing, third-party certification, etc.)
