TECHNICAL DATA SHEET

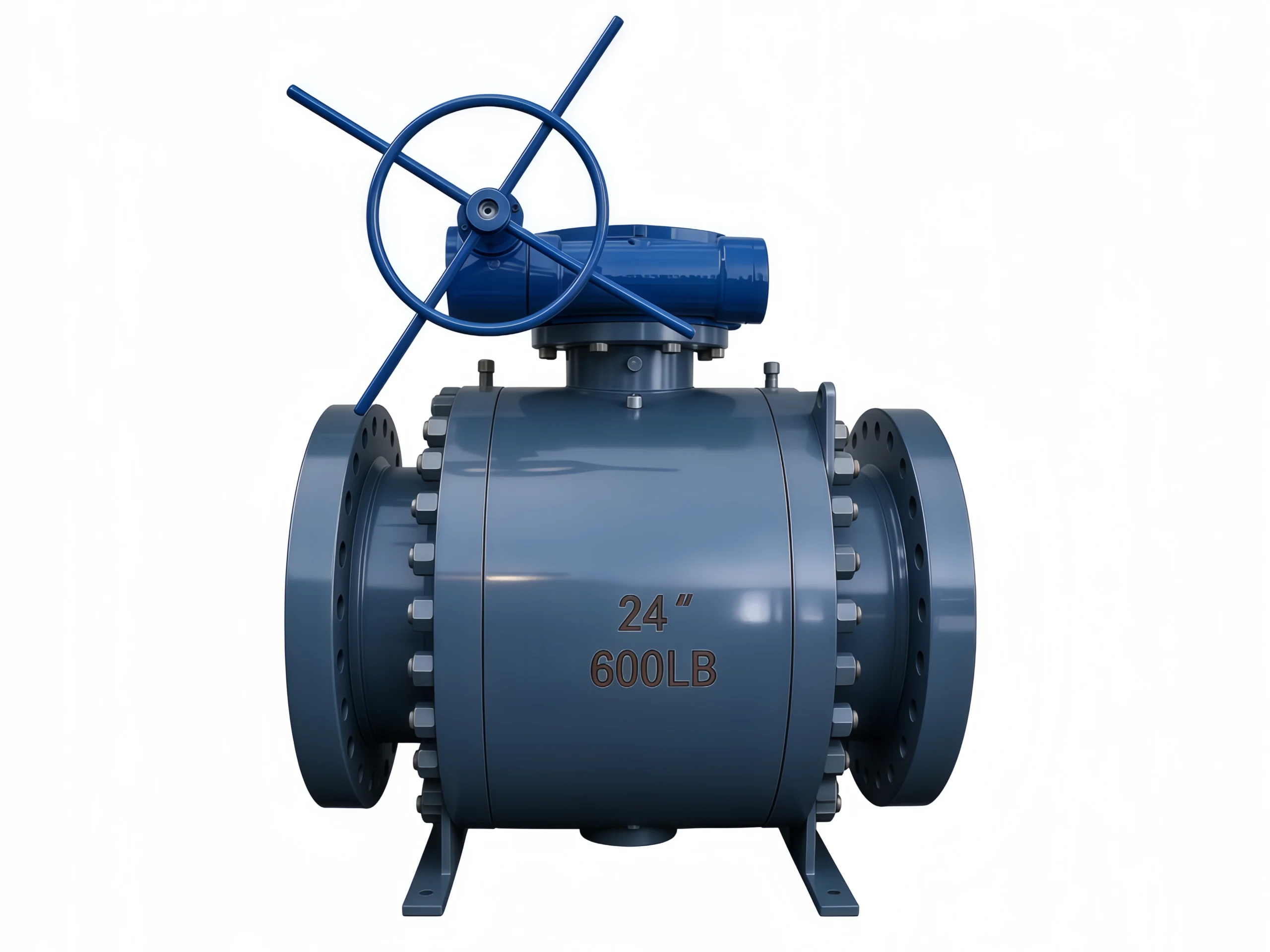

Product: 24″ CL600 Trunnion Mounted Ball Valve — Forged Steel Body

Parameter	Specification
Product Name	Trunnion Mounted Ball Valve (Side Entry, Bolted Body)
Nominal Size	24″ (DN600)
Pressure Rating	Class 600 LB (PN100)
Body Construction	3-Piece Bolted Body, Forged Steel
Bore Type	Full Bore
End Connection	RF Flanged (Raised Face) / RTJ (Optional)
Operation	Worm Gear (Handwheel)
Applicable Medium	Water, Oil, Gas, Sour Service (Optional)

Standard Forged Carbon Steel configuration — actual materials may vary per project specification.

Component	Standard Material
Body / Bonnet	ASTM A105 (Forged Carbon Steel)
Ball	ASTM A182 F316 (Forged SS) + ENP coating
Stem	ASTM A182 F316 (Forged SS) / F6a
Seat Insert	DEVLON / RPTFE / PEEK
Gasket	Spiral Wound SS316 with Graphite
Bolting	ASTM A193 B7 / A194 2H
Gearbox Housing	Cast Iron / Ductile Iron
External Coating	Yellow Anti-corrosion Paint
Gearbox Paint	Blue

Optional Forged Materials:

Parameter	Value
Design Temperature	-46°C to 200°C (dependent on seat material)
Design Pressure	Class 600 (max 10.2 MPa / 1480 psi at ambient temp)
Face-to-Face (RF)	1397 mm
Face-to-Face (RTJ)	1407 mm
Minimum Bore	589 mm
Height (H)	920 mm
Approximate Weight	3800–4200 kg (Forged bodies are typically heavier than cast)

Forged Body Advantages:

Superior Structural Integrity: The forging process eliminates internal porosity, shrinkage, and gas holes commonly found in castings, making it ideal for high-pressure and critical applications.
Homogeneous Grain Structure: Forging aligns the metal grain flow to match the principal stresses, resulting in higher tensile strength and toughness.
Enhanced Safety: Significantly reduced risk of leakage or catastrophic failure under thermal shock or severe cyclic loading.

Valve Design Features:

Trunnion Mounted Design: Upper and lower trunnion bearings fix the ball, drastically reducing operating torque at Class 600 pressures and ensuring stable sealing.
Double Block and Bleed (DBB): Independent seat sealing allows cavity pressure to be bled off to verify seat integrity.
Double Piston Effect (DIB): Optional Double Isolation and Bleed configuration available.
Fire-Safe Design: Certified to API 607/6FA, ensuring sealing integrity after exposure to fire.
Anti-Static Device: Ensures electrical continuity between ball, stem, and body.
Anti-Blowout Stem: Prevents stem ejection under pressure.
Emergency Sealant Injection: Fitted with sealant ports for emergency seat sealing.
Automatic Cavity Pressure Relief: Prevents over-pressurization of the body cavity.
