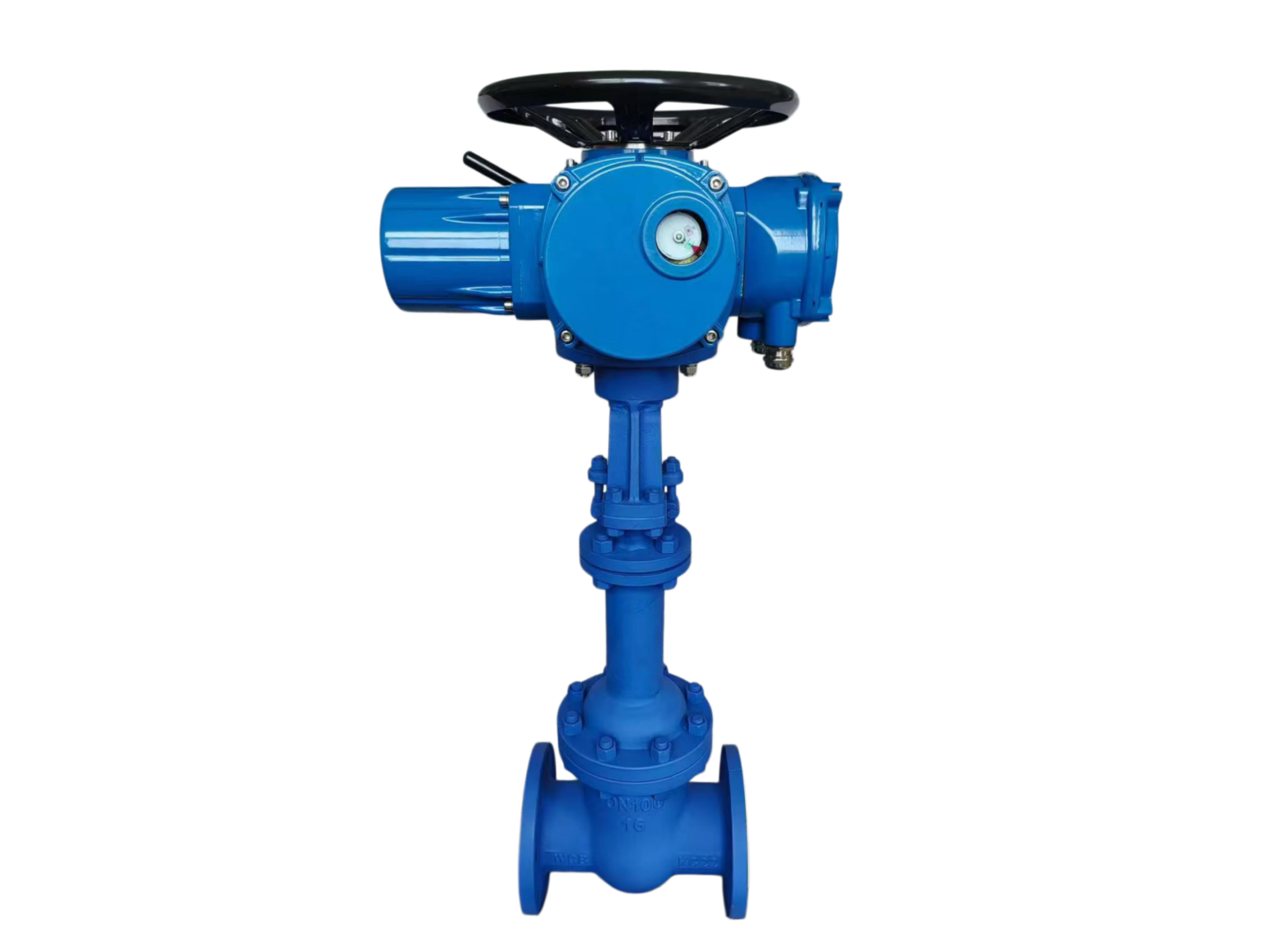

DN100-PN16-RF Motorized Gate Valve
Description
DN100 – PN16 – RF Motorized Gate Valve
Technical Data Sheet
1. General Information
| Item | Description |
|---|---|
| Valve Type | Gate Valve |
| Nominal Size | DN100 (4 Inch) |
| Pressure Rating | PN16 (16 bar) |
| Body Material | Cast Steel (WCB) as standard; stainless steel optional |
| Flange Connection | RF (Raised Face) to EN 1092-1 or ASME B16.5 Class 150 |
| Operation | Motorized Actuator |
| Application | Frequent on-off or remote control service; suitable for water, oil, steam, natural gas, etc. |
2. Design & Manufacturing Standards
| Standard | Description |
|---|---|
| Design Code | API 600 / ISO 10434 / BS 1414 or GB/T 12234 |
| Body Construction | Outside Screw and Yoke (OS&Y), Wedge Gate |
| Flange Dimensions | EN 1092-1 PN16 RF or ASME B16.5 Class 150 RF |
| Face-to-Face Dimension | ASME B16.10 or EN 558-1 Series 1 / GB/T 12221 |
| Pressure-Temperature Rating | ASME B16.34 or EN 12516 |
| Inspection & Testing | API 598 or ISO 5208 |
| Blow-out Proof Stem | Standard (per API 600) |
| Top Flange | ISO 5211 (for direct actuator mounting; must match) |
3. Main Materials (Typical – can be customized)
| Component | Standard Material | Optional Materials |
|---|---|---|
| Body | Cast Steel (WCB / A216 WCB) | Stainless Steel CF8M, CF3M, Alloy Steel |
| Bonnet | Cast Steel (WCB) | Matching body material |
| Wedge (Gate) | Cast Steel (WCB) + SS hardfacing (13Cr or Stellite) | Solid Stainless Steel CF8M |
| Stem | Stainless Steel A182 F6a (13Cr) or A182 F304 | Stainless Steel F316, 17-4PH, Inconel |
| Seat Sealing Surface | 13Cr or Stellite hardfacing directly on body | Replaceable stainless steel seat rings |
| Packing | Flexible graphite + SS spacer rings | PTFE + graphite, low emission packing |
| Gaskets | Flexible graphite + SS spiral wound | Metal ring gasket, PTFE |
| Fasteners | Alloy Steel A193 B7 (nuts A194 2H) | Stainless Steel A193 B8 |
| Handwheel (removed for motorized) | Cast steel or ductile iron | — |
4. Outline Dimensions & Weight (Typical values – may vary by manufacturer)
| Dimension Parameter | Value (Typical, ASME B16.10 Class 150 long pattern) |
|---|---|
| Face-to-Face Length L | Approx. 229 mm (ASME B16.10 Class 150) |
| Flange Outer Diameter D | Approx. 220 mm (EN 1092-1 PN16) or 230 mm (ASME B16.5 Class 150) |
| Bolt Circle Diameter K | Approx. 180 mm (EN) or 190 mm (ASME) |
| Flange Thickness C | Approx. 22 mm (EN) or 24 mm (ASME) |
| Number / Diameter of Bolt Holes | 8 × 18 mm (EN) or 8 × 19 mm (ASME) |
| Center Height (flange face to center) | Approx. 100 mm |
| Overall Height (excluding actuator) H | Approx. 540 mm (higher when stem fully raised) |
| Valve Weight (excluding actuator) | Approx. 55 kg |
| Electric Actuator Weight (reference) | Approx. 15 – 25 kg (depending on torque and brand) |
⚠ Dimensions above are typical references. Final dimensions to be confirmed with manufacturer’s drawing.
5. Pressure-Temperature Rating (ASME B16.34 – WCB body)
| Temperature (°C) | Max. Working Pressure (bar) |
|---|---|
| -29 ~ 38 | 16.0 (PN16 rating) |
| 100 | 14.5 |
| 150 | 12.5 |
| 200 | 10.8 |
| 250 | 9.5 |
| 300 | 8.2 |
| 350 | 7.0 |
| 400 | 5.5 |
| 425 | 4.4 |
For PN16 rating, the maximum allowable working pressure at ambient temperature is 16 bar. Stainless steel (CF8M) bodies offer slightly better high-temperature performance.
6. Performance Data
| Parameter | Value |
|---|---|
| Pressure Rating | PN16 (16 bar @ 38°C) |
| Shell Test Pressure (water) | 24 bar |
| High-Pressure Seat Test (water) | 17.6 bar |
| Low-Pressure Air Seat Test | 6 bar |
| Allowable Differential Pressure | Full rated pressure (gate valves not recommended for throttling) |
| Leakage Rate | Metal seated: API 598 allowable (minimal leakage) Soft seated optional: Zero leakage |
| Temperature Range (standard packing) | -29°C ~ +425°C |
| Suitable Media | Water, oil, steam, natural gas, non-corrosive and mildly corrosive media |
| Valve Type | OS&Y wedge gate valve, bi-directional sealing |
| Blow-out Proof Stem | Standard |
7. Electric Actuator Specification (Reference)
As electric actuators vary by brand and control requirements, below is a typical configuration recommendation:
| Parameter | Typical Value |
|---|---|
| Actuator Type | Multi-turn electric actuator |
| Mounting Connection | ISO 5210 or direct connection to stem nut |
| Max. Output Torque / Thrust | Based on valve thrust requirement (DN100 PN16 approx. 2000–3500 N thrust) |
| Power Supply | 380V / 3Ph / 50Hz or 220V / 1Ph |
| Control Type | On-Off or Modulating (4-20mA) |
| Enclosure Protection | IP67 (outdoor type) |
| Explosion Proof (optional) | Ex d IIB T4 (flameproof) |
| Accessories | Limit switches, torque switches, heater, local/remote control |
| Position Indication | Valve open/close indicator (mechanical or electronic) |
Gate valves require multi-turn electric actuators, not quarter-turn types.
8. Key Features
-
OS&Y wedge gate design – Stem movement is visible, allowing easy local indication of valve position
-
Bi-directional sealing – Both sides of the wedge seal simultaneously; equal pressure capability in both directions
-
Blow-out proof stem – Compliant with API 600 for safety
-
Full bore – No flow restriction; ideal for low pressure drop applications
-
Motorized actuation – Enables remote on/off, local operation, and signal feedback for automated systems
-
Wear & high temperature resistant – Hardfaced metal seats; suitable for steam, high-temperature oil, etc.
9. Ordering Information
Please provide the following when ordering:
-
Valve size (DN100), pressure rating (PN16)
-
Body, wedge, and seat sealing materials
-
Flange standard (EN or ASME) and face-to-face standard
-
Media name, temperature, and pressure
-
Electric actuator power supply, control type (on-off/modulating), protection/explosion-proof rating
-
Special requirements (low emission packing, third-party certification, special coating, etc.)
