Electric Actuated Trunnion Mounted Ball Valve
Description

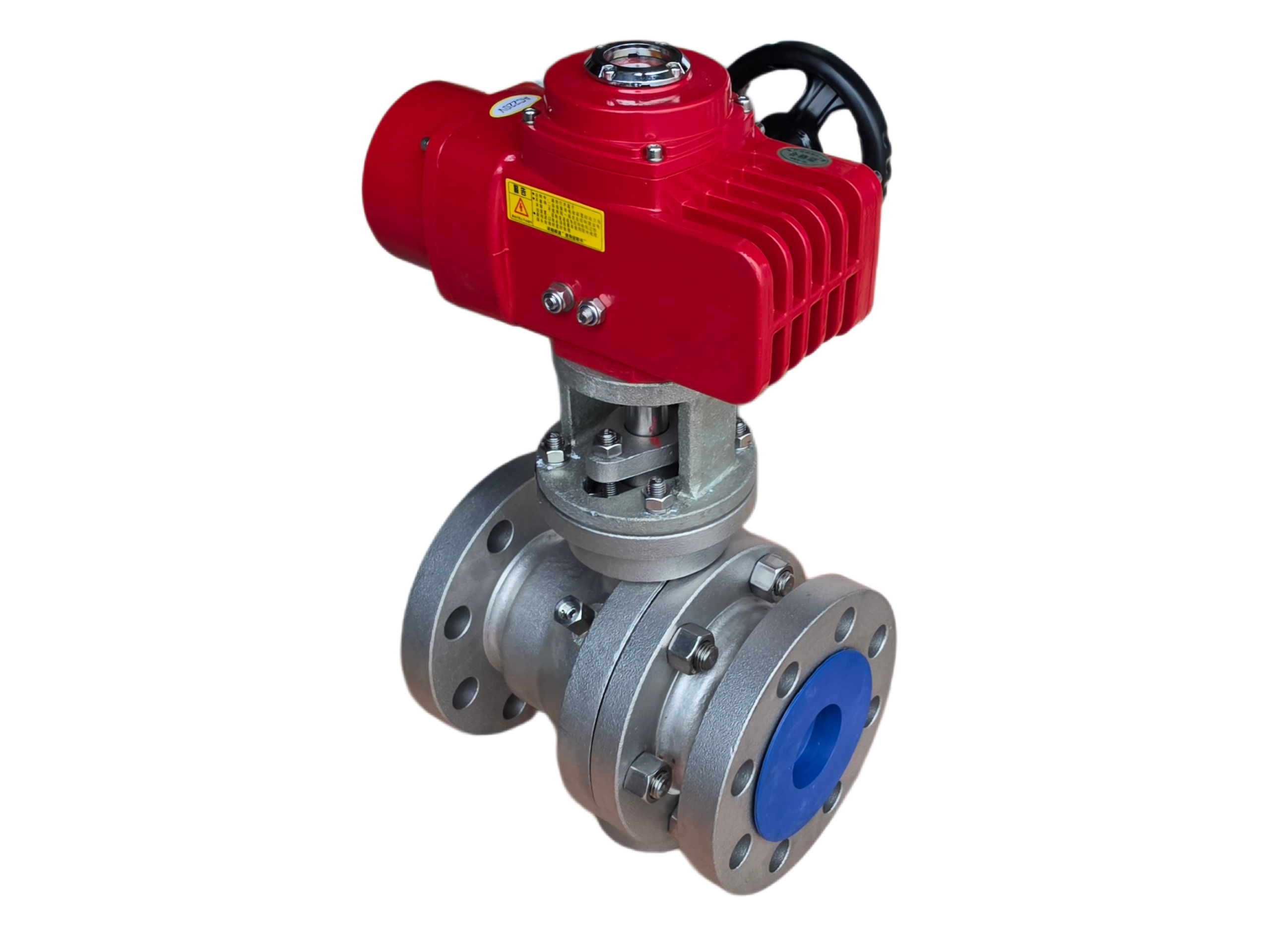

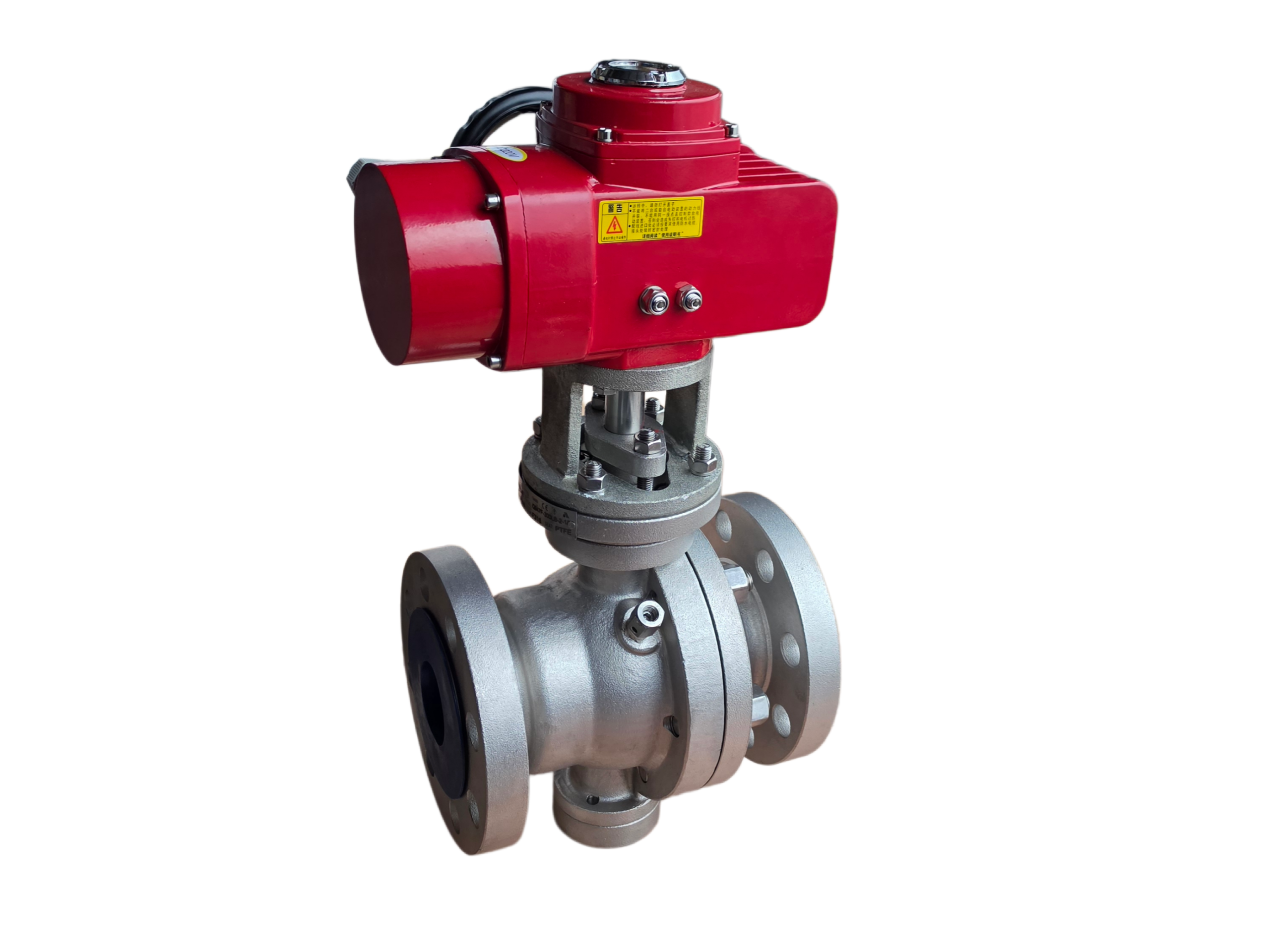

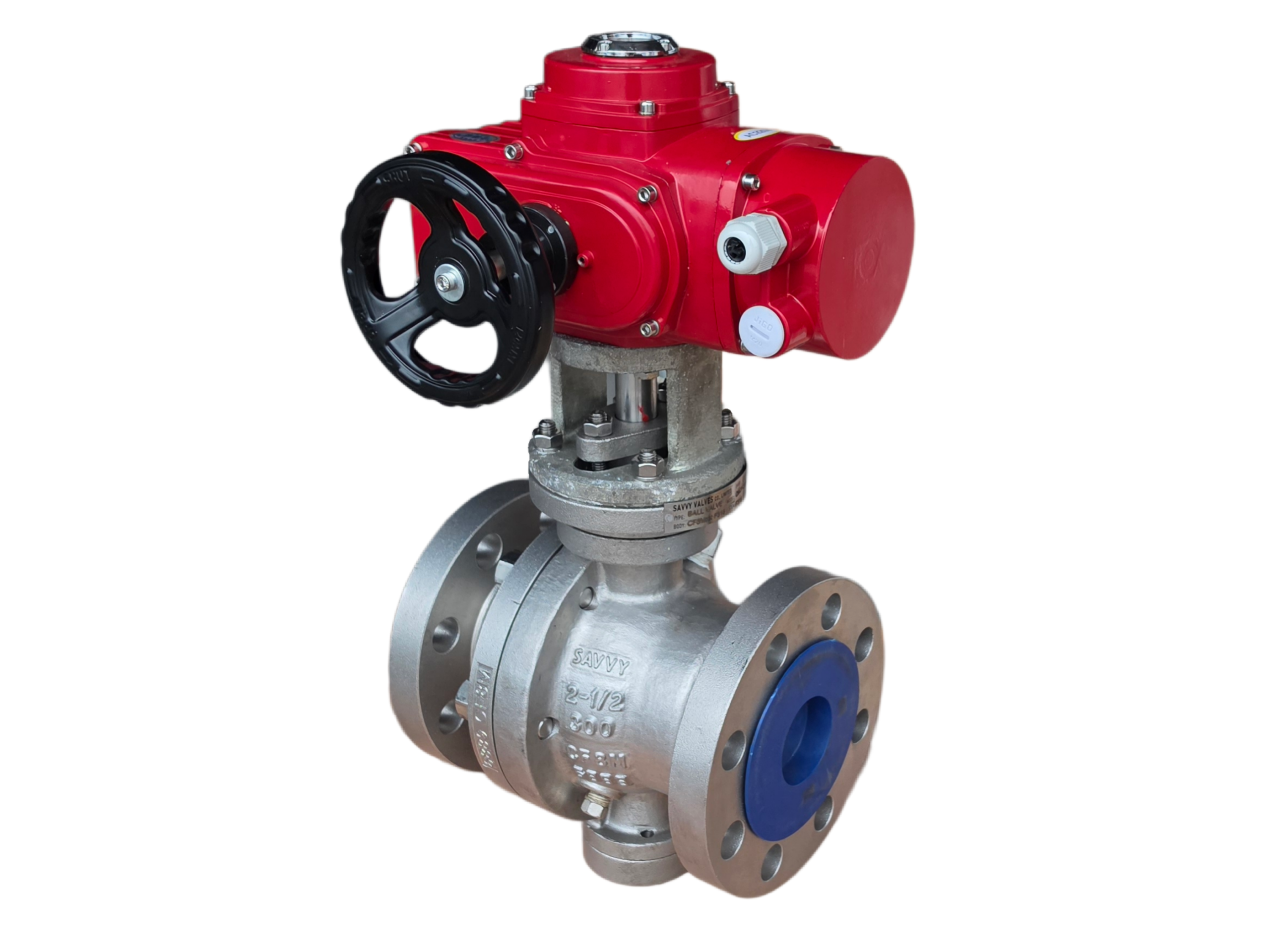

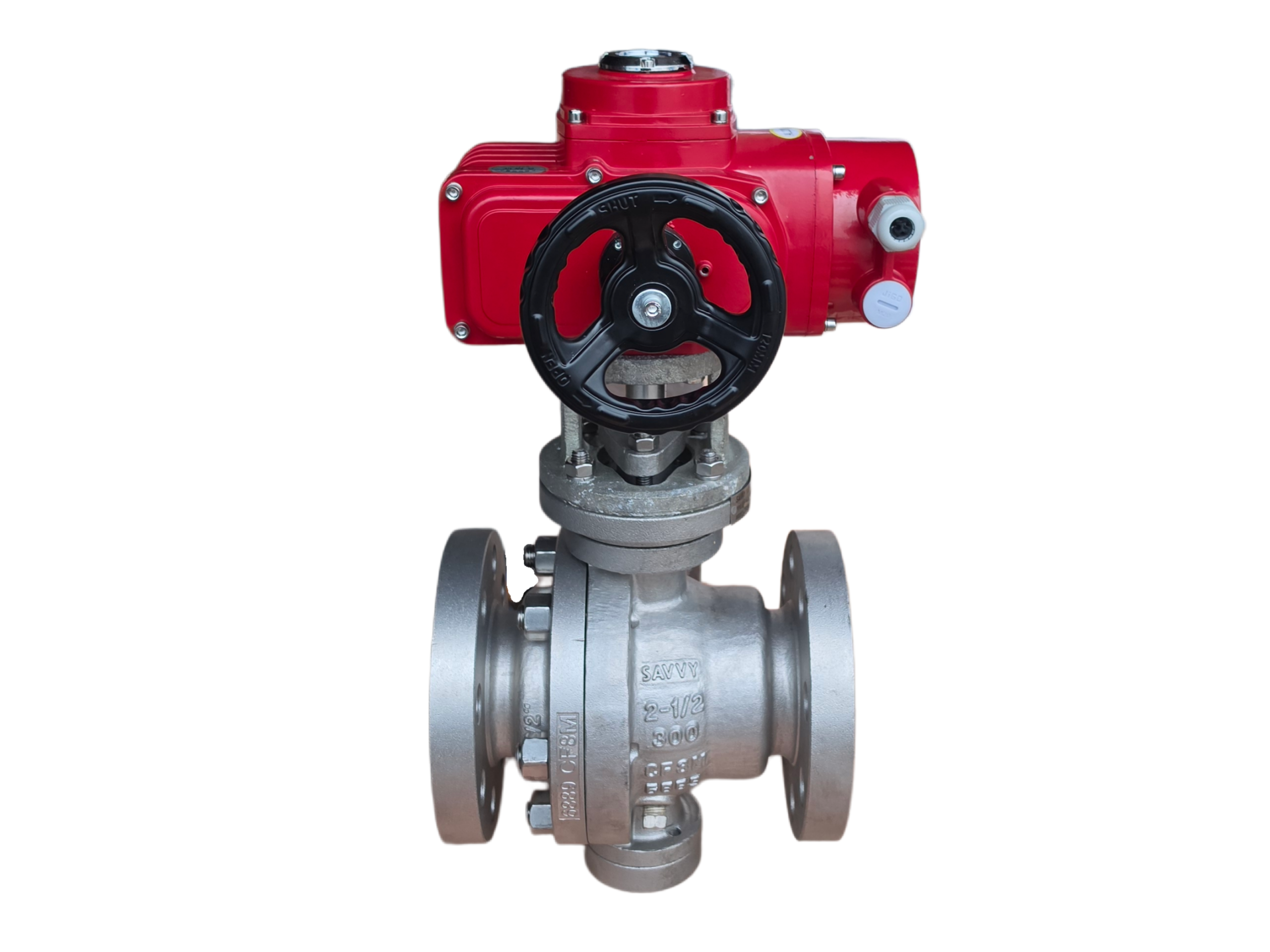

Electric Actuated Trunnion Mounted Ball Valve
2-1/2″ (DN65) | Class 300 | CF8M Stainless Steel | Electric Actuated with Manual Override
Product Overview
The SAVVY Electric Actuated Trunnion Mounted Ball Valve is engineered for high-pressure, high-cycle automated flow isolation in demanding industrial environments. Combining a robust CF8M (Stainless Steel 316) body with a trunnion mounted ball design, this valve delivers exceptionally low operating torque, superior sealing performance, and long service life — even under the most severe pressure conditions.
Equipped with a red electric actuator featuring a manual override handwheel, this valve offers seamless integration into automated process control systems, with the added assurance of manual operation during power failure or emergency situations.
Ideal for oil & gas, petrochemical, power generation, and high-pressure industrial pipelines, this valve is the reliable choice for critical isolation duties.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Trunnion Mounted Ball | Ball is supported by upper and lower bearings, drastically reducing operating torque and preventing deformation under high pressure. Ideal for high-pressure and large-diameter applications. |
| CF8M (SS316) Body | Excellent corrosion resistance for chemical, water, and petrochemical media. |
| Electric Actuation | Remote control capability with fast response. Compatible with 4-20mA, 0-10V, or dry contact signals for seamless DCS/PLC integration. |
| Manual Override Handwheel | Ensures safe operation during power failure or emergency. |
| Zero Leakage Sealing | Precision-machined ball and high-performance seats deliver bubble-tight shut-off (ISO 5208 Rate A / API 598). |
| Blow-out Proof Stem | Safety design prevents stem ejection under high pressure. |
| Anti-Static Device | Standard feature prevents static buildup between ball, stem, and body. |
| IP67 Weatherproof Actuator | Protects against dust and water ingress for reliable outdoor and harsh-environment operation. |
| Visual Position Indicator | Clear Open/Closed status visible at a glance. |
| Flanged Connection | ASME B16.5 Class 300 flanges for easy installation and maintenance. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Size | 2-1/2″ (DN65) |
| Pressure Rating | Class 300 (PN50) |
| Valve Type | Trunnion Mounted Ball Valve |
| Connection Type | Flanged (RF or RTJ) |
| Body Material | CF8M (Stainless Steel 316) |
| Ball Material | SS316 with Hard Chrome or ENP Plating |
| Stem Material | SS316 / 17-4PH |
| Seat Material | PTFE / RPTFE / PPL / Devlon (depending on media) |
| Seat Design | Single Piston / Double Piston (DBB) |
| Actuator Type | Electric Actuator (On/Off or Modulating) |
| Actuator Housing | Red Die-Cast Aluminum Alloy, IP67 Weatherproof |
| Manual Override | Yes, Handwheel (Black) |
| Voltage | AC 110V / 220V / 380V, DC 24V (Optional) |
| Control Signal | 4-20mA, 0-10V, or Dry Contact (Optional) |
| Design Standard | API 6D / ASME B16.34 |
| Flange Standard | ASME B16.5 Class 300 |
| Face-to-Face | ASME B16.10 |
| Testing Standard | API 598 / API 6D |
| Certification | ISO 9001, CE, API 6D (Optional) |
Materials of Construction
| Component | Material |
|---|---|
| Body | CF8M (Stainless Steel 316) |
| Bonnet | CF8M (Stainless Steel 316) |
| Ball | Stainless Steel 316, Hard Chrome Plated |
| Stem | Stainless Steel 316 / 17-4PH, Anti-Blow-out |
| Seat | PTFE / RPTFE / PPL / Devlon |
| Seat Retainer | Stainless Steel 316 |
| Trunnion Bearing | PTFE / Bronze / Stainless Steel with Hard Chrome |
| Body Seal | PTFE / Graphite / O-Ring |
| Packing | PTFE / Graphite |
| Actuator Housing | Die-Cast Aluminum, Red Epoxy Coated |
| Handwheel | Engineering Plastic / Aluminum, Black |
Performance Data
| Parameter | Value |
|---|---|
| Operating Temperature | -20°C to +180°C (-4°F to +356°F) depending on seat material |
| Maximum Working Pressure | Class 300 (PN50) |
| Leakage Class | Zero Leakage (ISO 5208 Rate A / API 598) |
| Actuator Protection Class | IP67 (IP68 Optional) |
| Actuator Duty Cycle | 30% (On/Off), 75% (Modulating) typical |
| Ambient Temperature | -20°C to +60°C (-4°F to +140°F) |
| Manual Override | Mechanical handwheel for emergency operation |
| Position Indicator | Visual indicator on actuator top |
| Anti-Static Device | Standard |
| Fire-Safe Design | Optional (API 607 / API 6FA certified) |
Pressure-Temperature Ratings (Class 300)
| Working Temperature | Maximum Allowable Working Pressure |
|---|---|
| -20°C ~ +50°C (-4°F ~ +122°F) | 50 bar (725 psi) |
| +100°C (212°F) | 45 bar (652 psi) |
| +150°C (302°F) | 40 bar (580 psi) |
| +180°C (356°F) | 35 bar (507 psi) |
Note: Final ratings depend on the specific seat and seal materials selected. Consult our engineering team for customized pressure-temperature requirements.
Applications
-
Oil & Gas Pipelines
-
Petrochemical Processing
-
Power Generation Plants
-
Chemical Processing
-
Water Treatment & Desalination
-
High-Pressure Industrial Systems
-
Automated Process Control
Why Choose This Valve?
-
Engineered for High Pressure: Trunnion mounted design ensures reliable performance in Class 300 and above.
-
Built to Last: CF8M stainless steel body and precision-machined components for extended service life.
-
Smart Automation: Electric actuator with manual override for flexible, safe operation.
-
Certified Quality: Manufactured under ISO 9001 quality management system. API 6D and CE certifications available upon request.
-
Global Support: Backed by SAVVY’s commitment to quality and customer service.
Ordering Information
To place an order or request a quote, please provide the following:
-
Size: 2-1/2″ (DN65) or custom sizes available
-
Pressure Rating: Class 300 (PN50) or custom
-
Body Material: CF8M (SS316) standard, other materials available
-
Seat Material: PTFE / RPTFE / PPL / Devlon
-
Actuator Voltage: AC 110V / 220V / 380V, DC 24V
-
Control Signal: On/Off, 4-20mA, 0-10V, or Dry Contact
-
Additional Options: Fire-safe, anti-static, IP68, etc.
Contact our sales team for customized solutions.
Notes & Precautions
-
Media Compatibility: Ensure the media is compatible with Stainless Steel 316 and the selected seat material.
-
Installation: Verify flange ratings match (Class 300). Tighten bolts evenly in a cross-diagonal pattern.
-
Wiring: Follow the actuator wiring diagram carefully. Ensure proper grounding and voltage supply.
-
Manual Override: Do not use the handwheel while the motor is running to avoid damage to the gear mechanism.
-
Storage: Store in a dry, ventilated area. Keep the valve in the open position to protect the ball and seat.
-
Maintenance: Periodically check the actuator for moisture ingress and verify the manual override function.
Specifications are subject to change without notice. Please refer to the final vendor-certified drawing for exact dimensions, weight, and actuator specifications.
SAVVY — Engineered for Reliability. Built for Performance.
